Hella Designline Led Double Module Stop/Rear Position/Rear Direction Indicator
Double designline led modules pre-assembled and wired for easy installation. The lamp features a 2m wiring loom and encapsulated bolts so lamp does not have to be disassembled to mount. Two holes for the mounting and one for the cable are all that is required, saving valuable installation time. Features hella ultra wide visibility optics for significantly improved side visibility.
- Additional information
Led stop/ rear position / rear direction indicator lamp featuring edt (enhanced definition technology) for the stop signal function and unique uwvo (ultra wide visibility optics) for significantly improved side visibility.
Horizontal Mount, Vertical Mount
Voltage: Multivolt (9-33VDC).
Wattage: Stop - 6W, Rear Position - 2W, Rear Indicator - 6W
Mounting: Designed to be mounted vertically.
Protection: Reverse Polarity and 1.5kW Transient Voltage Suppressor (TVS).
Cable Length: 2 metres (multi-core cable)

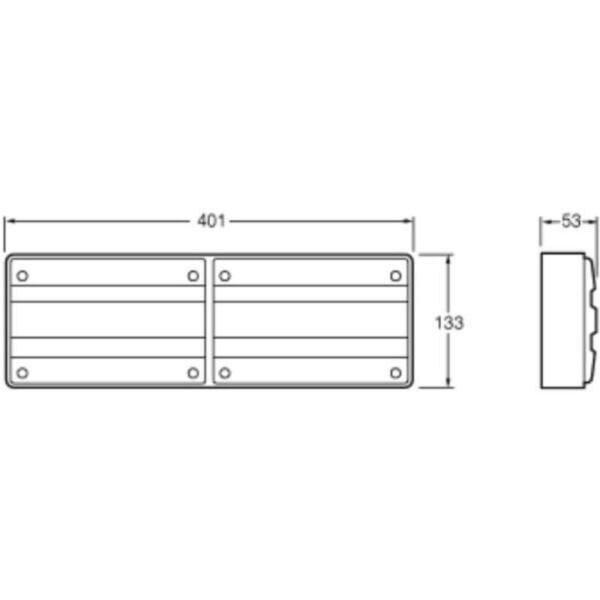

Note: Horizontal mount version shown (2426-H). Prolonged full submersion is not recommended.
ADR No: 6/00:Cat 2a, 49/00, 49/00
ADR Function: Rear Direction Indicator Lamp, Stop Lamp, Rear Position Lamp
CRN: 36718, 36722, 36721
