Hella Dual Function Safety Daylights Controller – 12 Volt

Hella Dual Function Safety Daylights Controller – 12 Volt

0 out of 5

$21.00

Specially designed dual function controller to turn HELLA Safety DayLights into front position lamps at night.

SKU: 9.5636.03 Tags: , ,
  • Description
  • Additional information
  • Specs

Description

This controller is designed to turn your hella safety daylights into front position lamps at night. The dual function controller is connected and activated by the headlamp of the vehicle. The dual function controller reduces the current to the safety daylights thus turning them into road legal* front position lamps. Only one controller is required for a pair of hella safety daylights.

Additional information

Weight 1 kg
Voltage

,

To Suit

Controller Safety DayLights™
P/N 9.5630.03 P/Ns 1009, 5619, 5630, 5631
P/N 9.5636.03 P/N 5636
P/N 9.5630.04 P/Ns 1009-24V, 5619-24V, 5630-24V, 5631-24V
P/N 9.5636.04 P/N 5636-24V

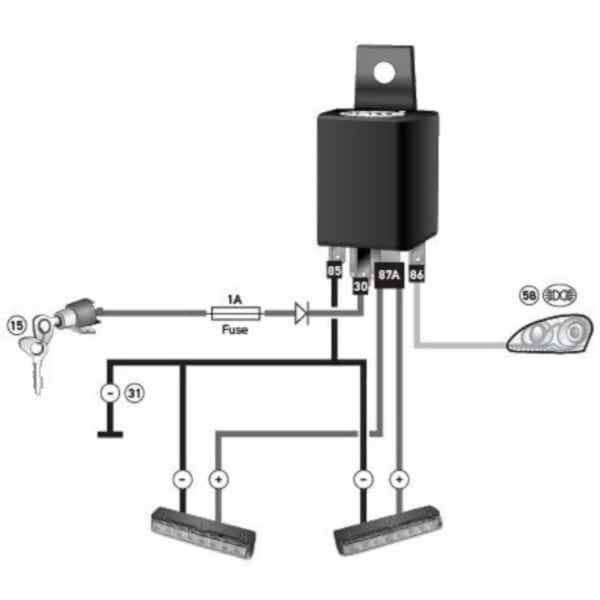

Wiring Specifications

Terminal Number Connect to
30 Ignition (+)
85 Earth return (-)
86 Front position or headlamps (+)
87A Safety DayLights (+)
