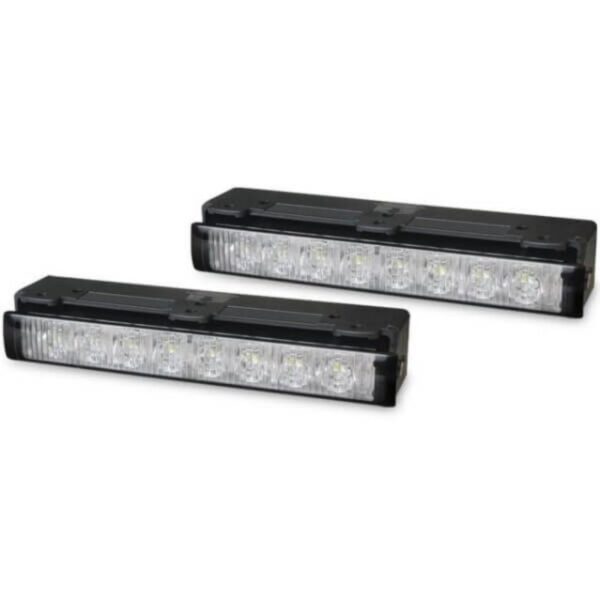

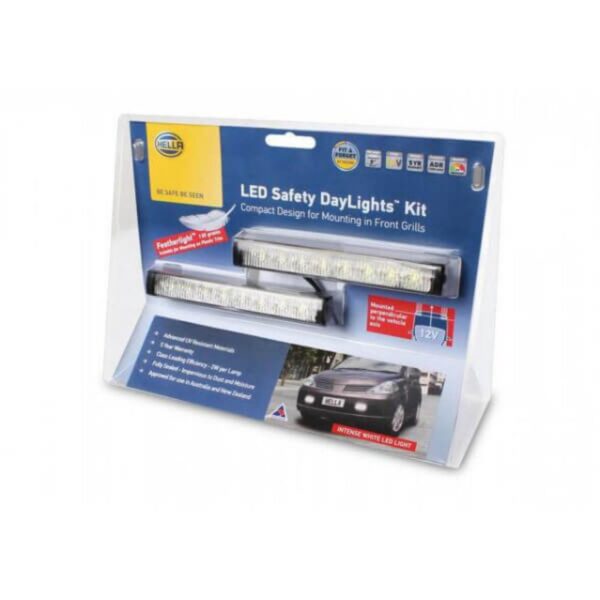

Hella 5636 Led Safety Daylights – Easy-Fit 12V Or 24V

Hella 5636 Led Safety Daylights – Easy-Fit 12V Or 24V

0 out of 5


Forward facing signal lamps, designed to be mounted on vehicles with flat fronts, or on motorbikes. The lamps are an easy-fit installation, usually requiring no extra parts. Once the wiring is complete and the bracket is fitted, the led lamp easily clips into

SKU: 5636 Tags: , Brand:
  • Description
  • Additional information
  • Specs


Easy-Fit installation
No extra parts required. LED lamp clips easily into place once wiring is complete and bracket is fitted.

“Never forget” safety enhancement
Safety DayLights™ will automatically switch ON once ignition is activated and turn OFF when headlights or park lamps are turned on.

Maximal visibility – Minimal power consumption
With a super low power consumption of only 2 watt the LED lights use 95 % less energy than dipped beam headlamps, saving 0.2 litres of fuel per 100 km.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Approved for use in New Zealand and Australia

Additional information




Suitable for horizontal mounting.

Power Consumption



Reverse polarity protection.
IP 6K7      (Protection against dust and temporary water immersion)
IP 6K9K    (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts

1013Single lamp 12V
1013-24VSingle lamp 24V

Lens Material

High impact acrylic.


ADR 76/00E24 5875ECE R87/00
